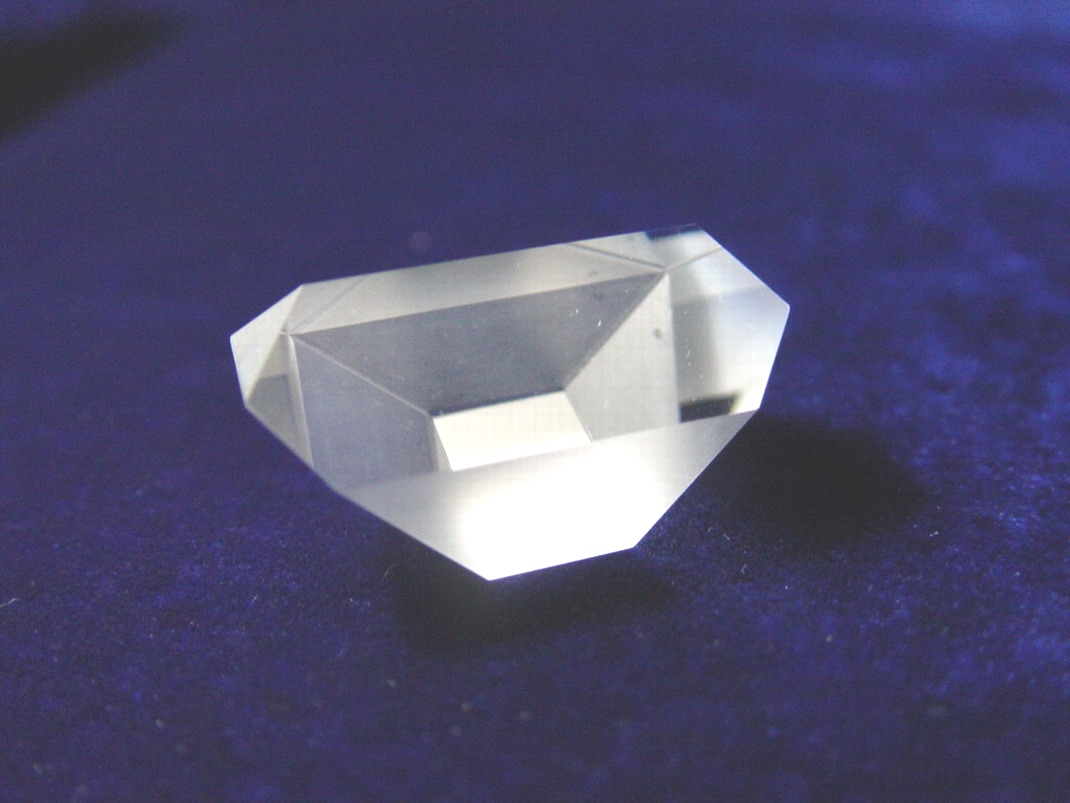

Roof Prism
Roof Prism with high dimension control and apply to any  Anti-reflecting coating.
It may be used to revert and invert the image as well as bend the line of sight through a 90 degree angle.
Specification:
|
Material |
BK7 grade A optical glass |
|
Dimension Tolerance |
+0.0, -0.2 mm |
|
Clear Aperture |
>85% |
|
Surface Quality |
60-40 scratch and dig |
|
Roof Angle Tolerance |
< 1 arc minute |
|
Flatness |
λ/2 @ 632.8 nm |
|
Protective Bevel |
0.25 mm x 45° |
BK7 Roof Prism Standard Products:
|
Part No. |
A (mm) |
B (mm) |
h (mm) |
|
1 |
15.0 |
15.0 |
12.0 |
|
2 |
23.0 |
23.0 |
18.0 |
|
3 |
31.5 |
31.5 |
23.0 |
Note: Other size, material and coatings are available upon request. |
| |
|
|
|
