Details |
 |
|

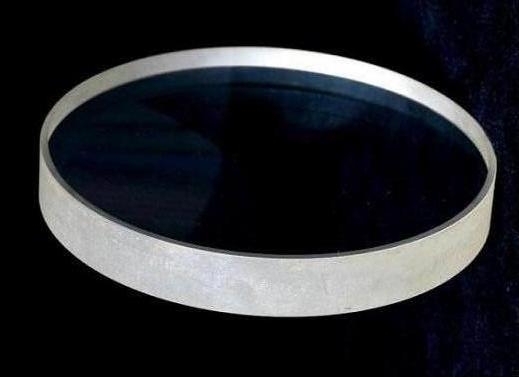

CaF2 crystal has the following exceptional properties that makes it a very important optic crystal:
(1) High optical transmittance from the vacuum ultraviolet to the infrared spectrum region(0.11-9μm).
(2) Used for Optical prisms, lenses, wedges, windows, other optical components,and etc.
Properties:
|
Density |
3.18 g/cm3 |
|
Melting Point |
1357~1360 |
|
Lattice Constant |
5.46 Å |
|
Hardness (Knoop) |
178 [100], 160 [110]kg/mm2 |
|
Dielectric Constant |
6.76 ,105HZ |
|
Crystal Type |
cubic, CaF2 type structure |
|
Cleavage Planes |
(111) |
|
|
|
|
Refractive Index
|
Wavelength, µm |
0.19 |
0.21 |
0.25 |
0.33 |
0.41 |
0.88 |
2.65 |
3.90 |
5.00 |
6.20 |
7.00 |
8.22 |
|
Refractive Index |
1.51 |
1.49 |
1.47 |
1.45 |
1.44 |
1.43 |
1.42 |
1.41 |
1.40 |
1.38 |
1.36 |
1.34 |
CaF2 Specifications:
We produce prisms, lenses, wedges, windows,wedges, and other optical components according to customers specifications and drawings.
|
Size |
Diameter up to 220mm (IR grade);
Diameter up to 160mm (UV grade); |
|
Inclusion |
None visible |
|
Dimension tolerance |
±0.1mm |
|
Oriential tolerance |
1 arc minutes |
|
Angle tolerance |
1 arc minutes |
|
Scratch/Dig code |
10/5 to MIL-O-13830A |
|
Parallelism |
6 arc seconds |
|
Flatness |
λ/20 @ 632.8nm | | |
| |
|
|
|
